RAEGuard 2 PID Fixed VOC Detector FGM-2001 / FGM-2002

Product ID: 9019 | Brand: RAE Hua Rui | Price: on request

Product images

RAEGuard 2 PID Fixed VOC Detector FGM-2001 / FGM-2002
RAEGuard 2 PID / FGM-200X
Fixed VOC PIDBroad-range VOC monitoring in hazardous and safe areas
Removable DigiPIDTool-free digital PID module for off-line calibration in the hazardous area
0.01–100 / 0.1–1000 / 1–1000 ppmThree DigiPID ranges; 1–1000 ppm disables CFs and relays
4–20 mA + Modbus3-wire analog, RS-485 Modbus, three alarm relays
Magnetic wandCalibrate and edit parameters with the Ex d lid closed
316 SS · IP65ATEX / IECEx / UL / CSA Class I Div. 1

Overview

RAEGuard 2 PID is a fixed photoionization (PID) detector for a broad range of VOCs. It runs on 10–28 VDC and provides 3-wire 4–20 mA plus RS-485 Modbus. The digital PID module unplugs in the hazardous area for calibration or service without taking the whole transmitter down.

Graphic display and fault/alarm LEDs; high, low and fault relays for beacons or process interlocks; 200+ correction factors. A magnetic-key interface keeps the explosion-proof cover closed while you edit parameters.

Document figures

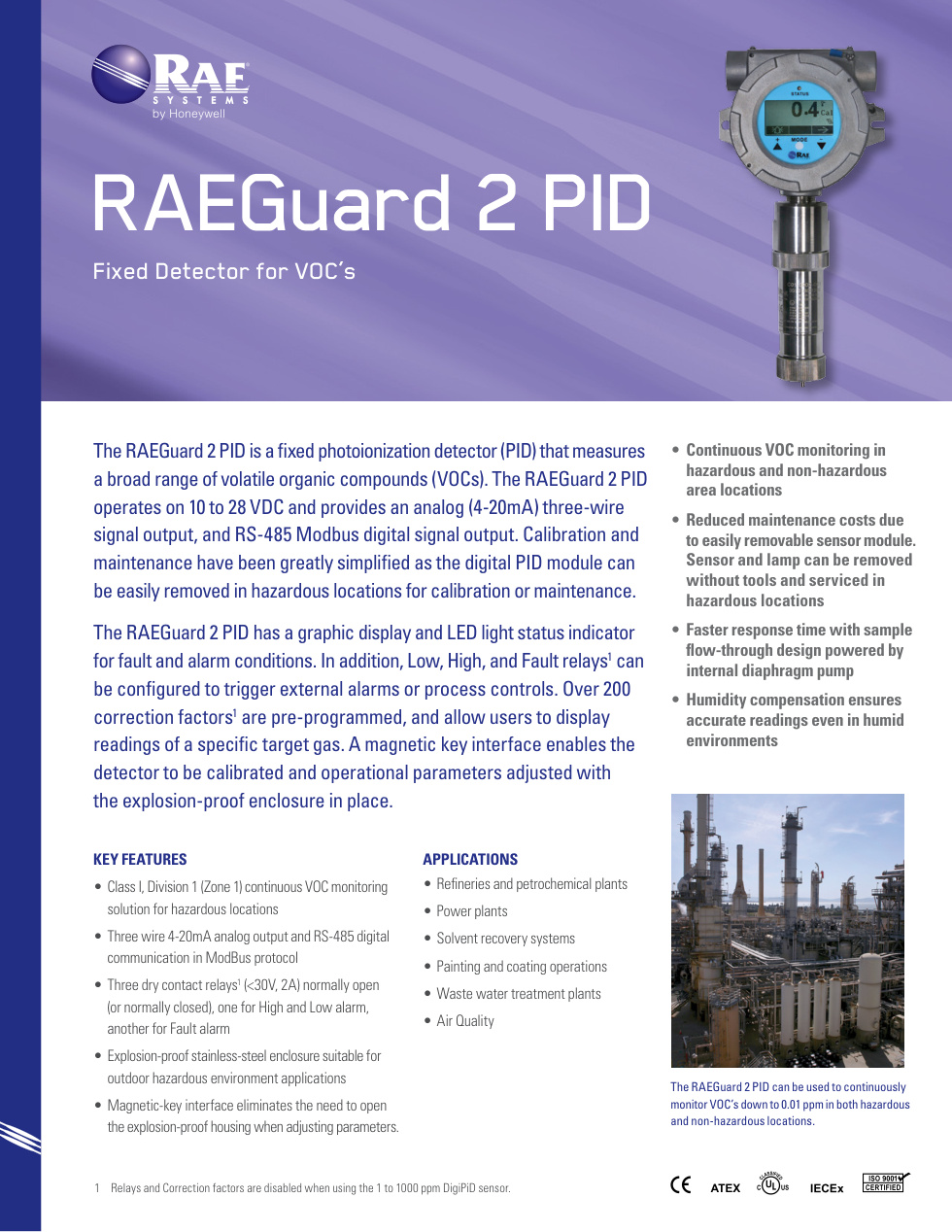

RAEGuard 2 PID English datasheet cover
English datasheet cover

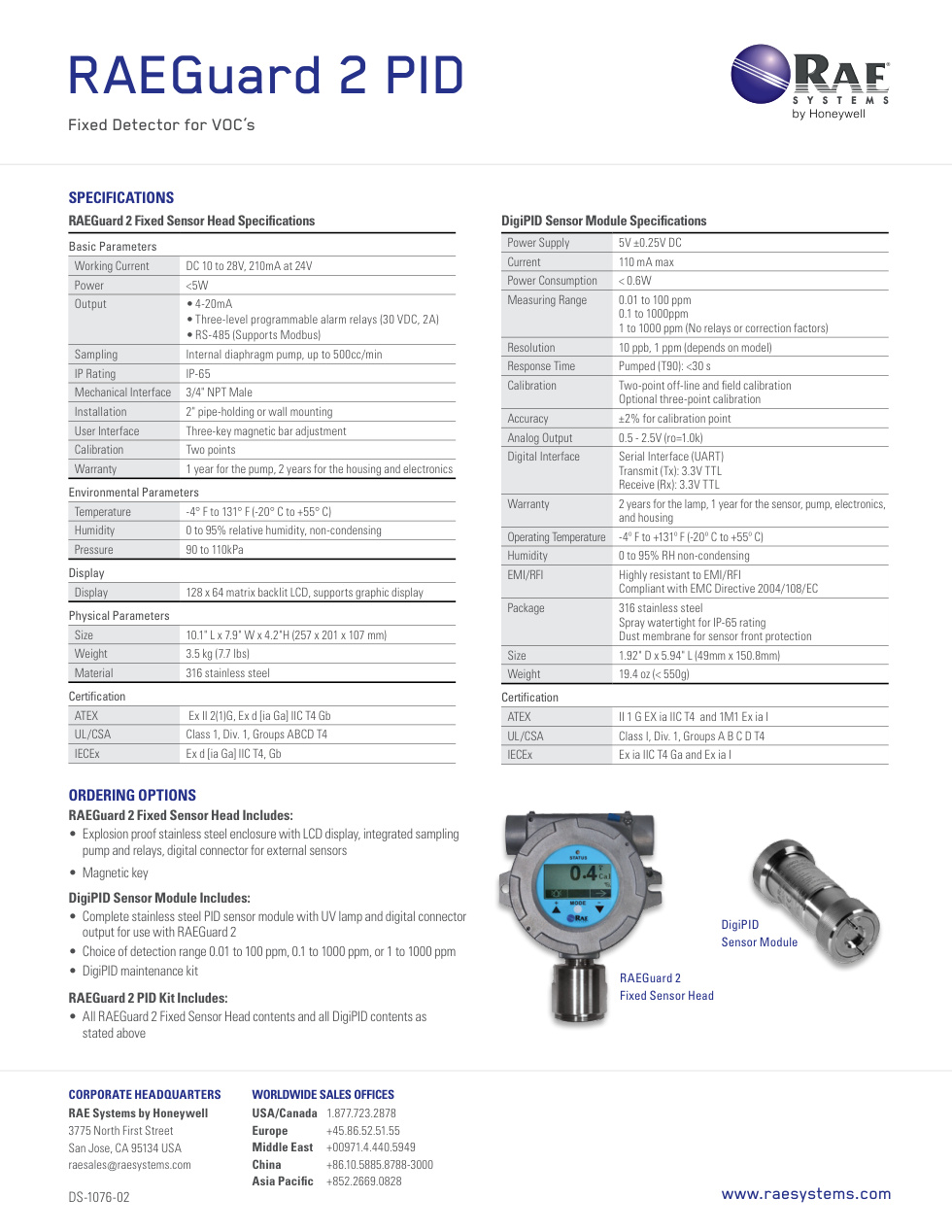

English datasheet specifications
Head and DigiPID specifications

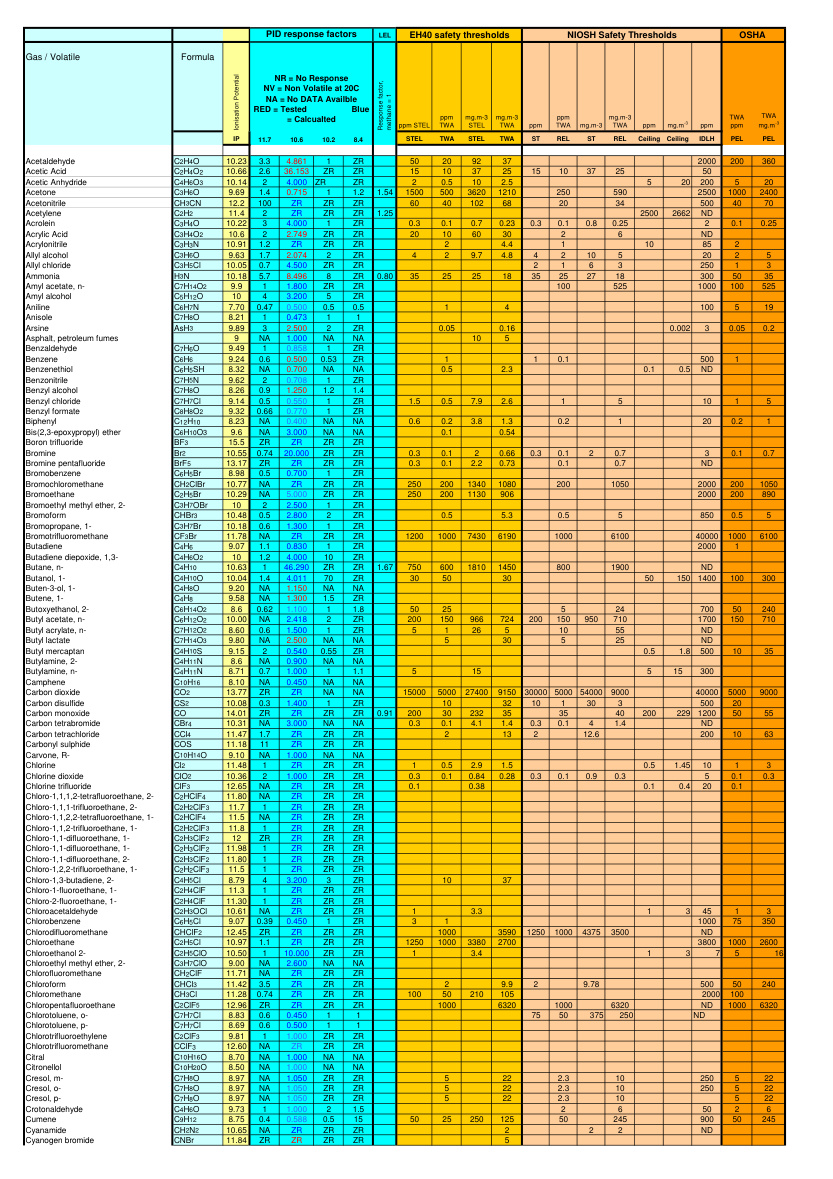

TVOC Basic Gas Table excerpt
TVOC gas table (excerpt)
Outline and mounting
257 × 201 × 107 mm

Features

Broad VOC coveragePre-programmed correction factors (200+) display a chosen target gas.
Service in Zone 1Unplug DigiPID in the hazardous area to calibrate, change the lamp or filters.
Flow-through pumpInternal diaphragm pump, up to 500 cc/min, faster response.
Humidity compensationStable readings in humid air.
Graphic display + LEDs128×64 backlit matrix; fault and alarm LEDs.
Three relaysHigh / low / fault dry contacts 30 VDC 2 A, NO or NC. Disabled on 1–1000 ppm modules.
Three-key wandNo lid opening. Power 10–28 VDC.
Stainless Ex d316 SS, 2″ pipe or wall, 3/4″ NPT.

Models and ordering

Each kit includes the head, DigiPID, magnetic key, tools, spare sensor and filters. Open a P/N for the SKU page; the table below is searchable.

ModelSamplingRangeApprovalP/N
FGM-2001Diffusion0.01–100 ppmATEX/IECExH-D03-0001-000
FGM-2002Diffusion0.1–1000 ppmATEX/IECExH-D03-0002-000
FGM-2001Diffusion0.01–100 ppmULH-D03-0015-000
FGM-2002Diffusion0.1–1000 ppmULH-D03-0016-000
FGM-2001Flow-through0.01–100 ppmATEX/IECExH-D03-0004-000
FGM-2002Flow-through0.1–1000 ppmATEX/IECExH-D03-0005-000
FGM-2001Flow-through0.01–100 ppmULH-D03-0009-000
FGM-2002Flow-through0.1–1000 ppmULH-D03-0010-000
—Flow-through1–1000 ppm (no CF / relays)ATEX/IECExH-D03-0008-000
—Flow-through1–1000 ppm (no CF / relays)ULH-D03-0012-000

Instrument kits

  • Head, DigiPID, magnetic key, hex tool, spare sensor, water-trap ×5, dust filters ×5, manual
  • Instrument matrix

Accessories

  • NPT plug, pipe-mount kit, rain covers, wand, HART, RAEPoint wireless
  • Accessory matrix
P/NFamilyTypeRangeDescription
D03-0001-C00 InstrumentInstrumentFGM-2001 / Diffusion / 0.01–100 ppmKIT, 0.01-100PPM, CHINA VERSION
D03-0002-C00 InstrumentInstrumentFGM-2002 / Diffusion / 0.1–1000 ppmKIT, 0.1-1000PPM, CHINA VERSION
D03-0004-C00 InstrumentInstrumentFGM-2001 / Flow-through / 0.01–100 ppmKIT, 0.01-100PPM, FLOW THROUGH, CN, FGM-2001
D03-0005-C00 InstrumentInstrumentFGM-2002 / Flow-through / 0.1–1000 ppmKIT, 0.1-1000PPM, FLOW THROUGH, CN, FGM-2002
D03-0016-C00 InstrumentInstrumentFGM-2001 / Flow-through / 0.01–100 ppm C6H6KIT, FGM-2001, CCEP, C6H6, FLOWTHR, CHINESE
H-D03-0001-000 InstrumentInstrumentFGM-2001 / Diffusion / 0.01–100 ppmKit, RAEGuard 2 PID, DIFF, 0.01 – 100 ppm, FGM-2001, ATEX/IECEx
H-D03-0001-C00 InstrumentInstrumentFGM-2001 / Diffusion / 0.01–100 ppmKIT, RG 2 PID, 0.01-100 PPM, FGM-2001, CN
H-D03-0002-000 InstrumentInstrumentFGM-2002 / Diffusion / 0.1–1000 ppmKit, RAEGuard 2 PID, DIFF, 0.1 – 1000 ppm, FGM-2002, ATEX/IECEx
H-D03-0004-000 InstrumentInstrumentFGM-2001 / Flow-through / 0.01–100 ppmKit, RAEGuard 2 PID, ATEX/IECEx, 0.01 – 100 ppm isobutylene equivalent,Flow-through
H-D03-0004-R00 InstrumentInstrumentFGM-2001 / Flow-through / 0.01–100 ppmKit, RAEGuard 2 PID, Russia, 0.01 – 100 ppm isobutylene equivalent
H-D03-0005-000 InstrumentInstrumentFGM-2002 / Flow-through / 0.1–1000 ppmKit, RAEGuard 2 PID, ATEX/IECEx, 0.1 – 1000 ppm isobutylene equivalent,Flow-through
H-D03-0005-R00 InstrumentInstrumentFGM-2002 / Flow-through / 0.1–1000 ppmKit, RAEGuard 2 PID, Russia, 0.1 – 1000 ppm isobutylene equivalent
H-D03-0008-000 InstrumentInstrumentFGM-200X / Flow-through / 1–1000 ppmKit, RAEGuard 2 PID, ATEX/IECEx, 1 – 1000 ppm isobutylene equivalent,Flow-through Note: Correction factors and relays are not available for this detection range
H-D03-0008-R00 InstrumentInstrumentFGM-200X / Flow-through / 1–1000 ppmKit, RAEGuard 2 PID, Russia, 1 – 1000 ppm isobutylene equivalentNote: Correction factors and relays are not available for this detection range
H-D03-0009-000 InstrumentInstrumentFGM-2001 / Flow-through / 0.01–100 ppmKit, RAEGuard 2 PID, UL, 0.01 – 100 ppm isobutylene equivalent,Flow-through
H-D03-0010-000 InstrumentInstrumentFGM-2002 / Flow-through / 0.1–1000 ppmKit, RAEGuard 2 PID, UL, 0.1 – 1000 ppm isobutylene equivalent,Flow-through
H-D03-0012-000 InstrumentInstrumentFGM-200X / Flow-through / 1–1000 ppmKit, RAEGuard 2 PID, UL, 1 – 1000 ppm isobutylene equivalent,Flow-through Note: Correction factors and relays are not available for this detection range
H-D03-0015-000 InstrumentInstrumentFGM-2001 / Diffusion / 0.01–100 ppmKit, RAEGuard 2 PID, DIFF, 0.01 – 100 ppm, FGM-2001, UL
H-D03-0016-000 InstrumentInstrumentFGM-2002 / Diffusion / 0.1–1000 ppmKit, RAEGuard 2 PID, DIFF, 0.1 – 1000 ppm, FGM-2002, UL
033-3032-000 AccessoriesAccessory—Magnet Key, RAEGuard and RAEGuard 2
490-0130-000 AccessoriesAccessory—TOOL, M6 HEX KEY, BM-564C, RAEGuard
490-0804-000 AccessoriesAccessory—PLASTIC HOSE CLAMP, BLACK, DIAMETER 39.5M
490-3039-000 AccessoriesAccessory—PLUG, 3/4" NPT, Aluminium, ATEX & CSA Certified
94000-C-1049 AccessoriesAccessory—RAEGuard 2 PID 2 Pipe Mount Kit
D03-2021-000 AccessoriesAccessory—WATERPROOF SLEEVE, RAEGUARD 2 PID
D03-2022-000 AccessoriesAccessory—DOUBLE FILTER, 30-37MM
D03-2023-000 AccessoriesAccessory—RAIN COVER, RAEGUARD 2 PID
D03-2024-000 AccessoriesAccessory—RAIN COVER, DIFFUSION, RAEGUARD 2 PID
D03-2025-000 AccessoriesAccessory—RAIN PIPE, RAEGUARD 2 PID
D03-3015-000 AccessoriesAccessory—RAEGuard 2 PID Calibration Cap
D03-3017-000 AccessoriesAccessory—WATERPROOF PACKAGE, RAEGUARD 2 PID
F08-0004-000 AccessoriesAccessory—RAEPoint, RRA2000, ATEXIECEX For RAEGuard 2 PID, REMOTE, RM2400A, 2.4GHz
033-3034-000 Consumables and SparesConsumable—ASSY, FILTER (D50MMX0.22UM)
033-3035-000 Consumables and SparesConsumable—DigiPID external dust pre-filter
050-0061-001 Consumables and SparesConsumable—DigiPID MARK2 lamp, 10.6 ev, 1/2"
081-0002-000 Consumables and SparesSpare—Kit, Lamp Cleaning
081-0017-000 Consumables and SparesConsumable—Kit, Lamp Cleaning (cleaning solution: Isopropanol)Note: The recommended cleaning fluid Isopropanol is not included.
081-0018-C00 Consumables and SparesConsumable—KIT, AIR DRYING PRE-FILTER, CHINA
3006-6744-001 Consumables and SparesSpare—HART Module for RAEGuard2 PID, UHM-01
411-0024-026 Consumables and SparesSpare—TUBING, TYGON, 332X732X116
430-0009-025 Consumables and SparesSpare—SCREW PKG 25, MACHINE, 256X316, (PCB MOUNT
430-0014-001 Consumables and SparesSpare—Teflon O-Ring(LAMP use)
430-0314-000 Consumables and SparesSpare—SCREW, M4X12, SET, SOCKET, HEX, SS, NC, GB80-85
430-B076-060 Consumables and SparesConsumable—O-RING, 100.6X95X2.8, NBR, BLACK
430-B082-0H0 Consumables and SparesSpare—O-Ring,40x35x2.5mm, Silicon Rubber
430-B083-0H0 Consumables and SparesSpare—O-Ring,8.5x4.5x2mm, Silicon Rubber
490-0011-000 Consumables and SparesConsumable—EXTERNAL FILTER, 37MM, 0.45UM PTFE
490-0011-005 Consumables and SparesConsumable—DigiPID external water trap filter (Pack of 5)
490-0163-000 Consumables and SparesConsumable—FILTER HOUSING GLASS AND STEEL
600-0002-000 Consumables and SparesConsumable—Isobutylene 100ppm 34L
600-0002-001 Consumables and SparesConsumable—Isobutylene 100ppm 103L
600-0024-000 Consumables and SparesSpare—Air 0 ppm 34L steel
600-0062-000 Consumables and SparesSpare—N2 100 34L
600-0069-000 Consumables and SparesConsumable—Isobutylene 10ppm 34L
600-0310-000 Consumables and SparesConsumable—DRYING AGENT, CACL2, PACK OF 30
C01-0001-000 Consumables and SparesSpare—DigiPID sensor module, ATEX/IECEx/UL/CHINA, 0.01 - 100 ppm isobutylene equivalent,Flow-through
C01-0001-R00 Consumables and SparesConsumable—DigiPID sensor module, Russia, 0.01 - 100 ppm isobutylene equivalent
C01-0002-000 Consumables and SparesSpare—DigiPID sensor module, ATEX/IECEx/UL/CHINA, 0.1 - 1000 ppm isobutylene equivalent,Flow-through
C01-0002-R00 Consumables and SparesConsumable—DigiPID sensor module, Russia, 0.1 - 1000 ppm isobutylene equivalent
C01-0004-000 Consumables and SparesSpare—DigiPID sensor module, ATEX/IECEx/UL, 1 - 1000 ppm isobutylene equivalent,Flow- through*Note: Correction factors and relays are not available for this detection range
C01-0004-R00 Consumables and SparesConsumable—DigiPID sensor module, Russia, 1 - 1000 ppm isobutylene equivalent*Note: Correction factors and relays are not available for this detection range
C01-0902-011 Consumables and SparesSpare—DigiPID Sensor Module, ATEXIECExUL, 0.01 - 100 ppm, with package
C01-0902-012 Consumables and SparesSpare—DigiPID Sensor Module, ATEXIECExUL, 0.1 - 1000 ppm, with package
C01-2017-010 Consumables and SparesSpare—DigiPID Teflon UV electrode shield pack of 10
C01-2021-000 Consumables and SparesSpare—DigiPID Sensor Cover
C01-2022-000 Consumables and SparesConsumable—DigiPID Mesh Filter
C01-2023-000 Consumables and SparesSpare—DigiPID Dust Cover
C01-2023-010 Consumables and SparesSpare—DUST COVER, DIGI PID, PACK OF 10
C01-2034-005 Consumables and SparesConsumable—DigiPID internal dust filter (Pack of 5)
C01-2035-000 Consumables and SparesSpare—UV SHEILD, EMBOSSMENT, DIGI PID
C01-3007-000 Consumables and SparesSpare—SENSOR DETECTOR ASSY, DIGI PID
C01-3007-100 Consumables and SparesSpare—DigiPID replacement sensor kit - Teflon construction with 3 electrodes
C01-3007-200 Consumables and SparesSpare—DigiPID replacement sensor kit with stainless steel UV shield
C01-3012-000 Consumables and SparesSpare—DigiPID flowthough adapter - Stainless steel (included standard with all DigiPID sensor modules)
D03-0304-000 Consumables and SparesSpare—Enhanced waterproof protection housing
D03-1012-000 Consumables and SparesSpare—PCB ASSY, MAIN BOARD, RAEGUARD 2 PID
D03-1013-000 Consumables and SparesSpare—PCB ASSY,CONNECTOR BOARD,RAEGUARD 2 PID
D03-2006-002 Consumables and SparesSpare—Sinter screws for use in RAEGuard safety barrier adapter ATEX/IECEx (pack of 2)
D03-2006-102 Consumables and SparesSpare—Mesh screws for use in RAEGuard safety barrier adapter UL (pack of 2)
D03-3001-001 Consumables and SparesSpare—RAEGuard 2 PID Display Module Assembly
D03-3002-000 Consumables and SparesSpare—PCB ASSY,CONNECTOR BOARD,RAEGUARD 2 PID
D03-3003-000 Consumables and SparesSpare—PCB ASSY,CONNECTOR BOARD,RAEGUARD 2 PID
D03-3005-000 Consumables and SparesSpare—THP SENSOR MODULE ASSY, RAEGUARD 2 PID
D03-3018-005 Consumables and SparesSpare—WATERPROOF FITER ASSY, RGD 2 PID, PK OF 5
D03-3021-000 Consumables and SparesConsumable—Spare O-Ring Kit RAEGuard 2 PID
H-D03-0007-000 Consumables and SparesSpare—RAEGuard 2 Fixed Head - ATEX/IECEx (No sensor module)(Includes RAEGuard 2 fixed head, ATEX safety barrier magnetic key, hex service tool, user manual)
H-D03-0007-R00 Consumables and SparesSpare—RAEGuard 2 Fixed Head - Russia (No sensor module)(Includes RAEGuard 2 fixed head, ATEX safety barrier magnetic key, hex service tool, user manual)
H-D03-0013-000 Consumables and SparesSpare—RAEGuard 2 Fixed Head - UL (No sensor module) (Includes RAEGuard 2 fixed head, ATEX safety barrier magnetic key, hex service tool, user manual)
H-D03-1012-000 Consumables and SparesSpare—PCB ASSY, MAIN BOARD, RAEGUARD 2 PID
H-D03-2015-000 Consumables and SparesSpare—ENCLOSURE TOP ASSY, RAEGUARD 2 PID, ATEX, H
H-D03-3001-000 Consumables and SparesSpare—DISPLAY MODULE ASSY, RAEGUARD 2 PID, FOR SERVICE

Specifications

Sensing

ItemValue
PrinciplePhotoionization PID (not NDIR, not catalytic bead)
SensorDigiPID smart digital module, 10.6 eV UV lamp
SamplingInternal diaphragm pump up to 500 cc/min (flow-through); diffusion kits also listed
Range0.01–100 ppm; 0.1–1000 ppm; 1–1000 ppm (no CFs, no relays)
Resolution10 ppb or 1 ppm, by module
Accuracy±2% at the calibration point (DigiPID)
T90Pumped < 30 s; DigiPID ~5 s pumped / ~30 s diffusion
CalibrationTwo-point (zero + span); optional three-point. Isobutylene recommended

Electrical

ItemValue
Power10–28 VDC; ~210 mA at 24 V; < 5 W; Um 28 VDC
Analog3-wire 4–20 mA
DigitalRS-485 Modbus
RelaysThree programmable alarm relays 30 VDC 2 A (disabled on 1–1000 ppm)
Entry3/4″ NPT Male
UIThree-key magnetic wand
Display128×64 backlit matrix LCD, graphic

Mechanical, environment, approvals

ItemValue
IngressIP65
Mounting2″ pipe or wall; 133 mm (5.25″) hole pitch; sensor must hang vertically down
Size / weight257 × 201 × 107 mm, stainless steel, 3.5 kg (7.7 lb)
Temperature−20 to +55 °C (−4 to 131 °F)
Humidity0–95 %RH non-condensing
Pressure90–110 kPa
Head approvalsATEX II 2G Ex d ia IIC T4 Gb; UL/CSA Class I Div. 1 ABCD T4; IECEx Ex d ia IIC T4 Gb
DigiPID approvalsATEX II 1G Ex ia IIC T4; UL/CSA Class I Div. 1 ABCD T4; IECEx Ex ia IIC T4 Ga

DigiPID module

ItemValue
Supply5 V ±0.25 V DC; 110 mA max; < 0.6 W
Module analog0.5–2.5 V (ro = 1.0 kΩ)
DigitalUART 3.3 V TTL
Size / weightØ 49 × 150.8 mm; < 550 g
WarrantyLamp 2 years; sensor / pump / electronics / housing 1 year

Typical gases and correction factors

Typical compounds from the TVOC Basic Gas Table — not the full library. DigiPID uses a 10.6 eV lamp: target ppm ≈ isobutylene-equivalent reading × CF. Species with IP above 10.6 eV (formaldehyde, dichloromethane) are ZR with this lamp. The 1–1000 ppm DigiPID disables correction factors and relays. Download the PDF for the complete table.

GasFormulaIP (eV)10.6 eV CFNote
IsobutyleneC4H89.241.00Calibration gas; CF reference
BenzeneC6H69.240.53BTX; tested in the table
TolueneC7H88.820.54BTX
Xylene, m-C8H108.560.50BTX
Xylene, o-C8H108.560.57BTX
Xylene, p-C8H108.440.46BTX
StyreneC8H88.400.45
Vinyl chlorideC2H3Cl9.992.0
AcetoneC3H6O9.691.110.6 eV column (calculated)
n-HexaneC6H1410.134.3
Methyl ethyl ketoneC4H8O9.510.86
Ethyl acetateC4H8O210.014.6
PhenolC6H6O8.511.0
TrichloroethyleneC2HCl39.450.62
AmmoniaNH310.189.7IP close to the lamp; low response
AcetaldehydeC2H4O10.23610.6 eV column (calculated)
FormaldehydeCH2O10.87ZRIP above 10.6 eV; no response with this lamp
DichloromethaneCH2Cl211.32ZRIP above 10.6 eV; no response with this lamp

Scope of supply

Each instrument kit

  • RAEGuard 2 flameproof head
  • DigiPID sensor module
  • Magnetic key and hex tool
  • Spare sensor
  • External water-trap filters ×5 and internal dust filters ×5
  • User manual

Fixed head also includes

  • LCD, sample pump and relays
  • Digital connector for the sensor
  • Magnetic key

Common options

  • HART module UHM-01
  • 2″ pipe-mount kit 94000-C-1049
  • Isobutylene calibration gas
  • Head without sensor H-D03-0007-000 / H-D03-0013-000

The 1–1000 ppm DigiPID has no correction factors and no relays. On flow-through units, fit the water trap to the longer inlet marked IN.

Installation and wiring

Pick the mount, drill wall holes 133 mm centre-to-centre. Keep the sensor pointing straight down. Fit the water-trap filter to inlet IN. Isolate power and confirm a gas-free area before opening the cover; European installs must follow EN 60079-14.

GroupPinMarkFunction
1 Relays1ERRFault
1 Relays2LOWLow alarm
1 Relays3HIGHHigh alarm
1 Relays4COMRelay common
2 Power / analog5OUT4–20 mA
2 Power / analog6GND0 V
2 Power / analog7+V10–28 VDC
3 RS-4858485ARS-485 A
3 RS-4859485BRS-485 B

Display, calibration and maintenance

Factory-calibrated, but bump-test with a known gas before service. Two-point calibration: zero then span (isobutylene). The magnetic wand opens the menus with the lid closed.

DigiPID unplugs in the hazardous area. Replace the 10.6 eV lamp, internal dust filters and external water traps per the manual. Use only the OEM lamp and PTFE O-ring.

DigiPID sensor module

DigiPID is an intrinsically safe VOC module with UV-lamp drive and digital output. Mated to the RAEGuard 2 head it forms an Ex d + Ex ia fixed system. Three ranges; 5 V module supply; 2-year lamp warranty. Flow-through adapter C01-3012-000 ships with the module.

Applications

Refineries and petrochemical plantsPower plantsSolvent recoveryPainting and coatingWastewater treatmentAmbient air VOCHazardous area Zone 1 / Div. 1

Back to products

WhatsAppLive chat
Hotline
Pre-sales: 13241121312
After-sales: 010-84932407
WeChat
WeChat same as: 13241121312
QR
Back to top
